Trinity 2 12V Monitor Cable
Trinity 2 12V Monitor Cable
Regular price
$295.00 USD
Regular price
Sale price
$295.00 USD
Unit price
per
Couldn't load pickup availability

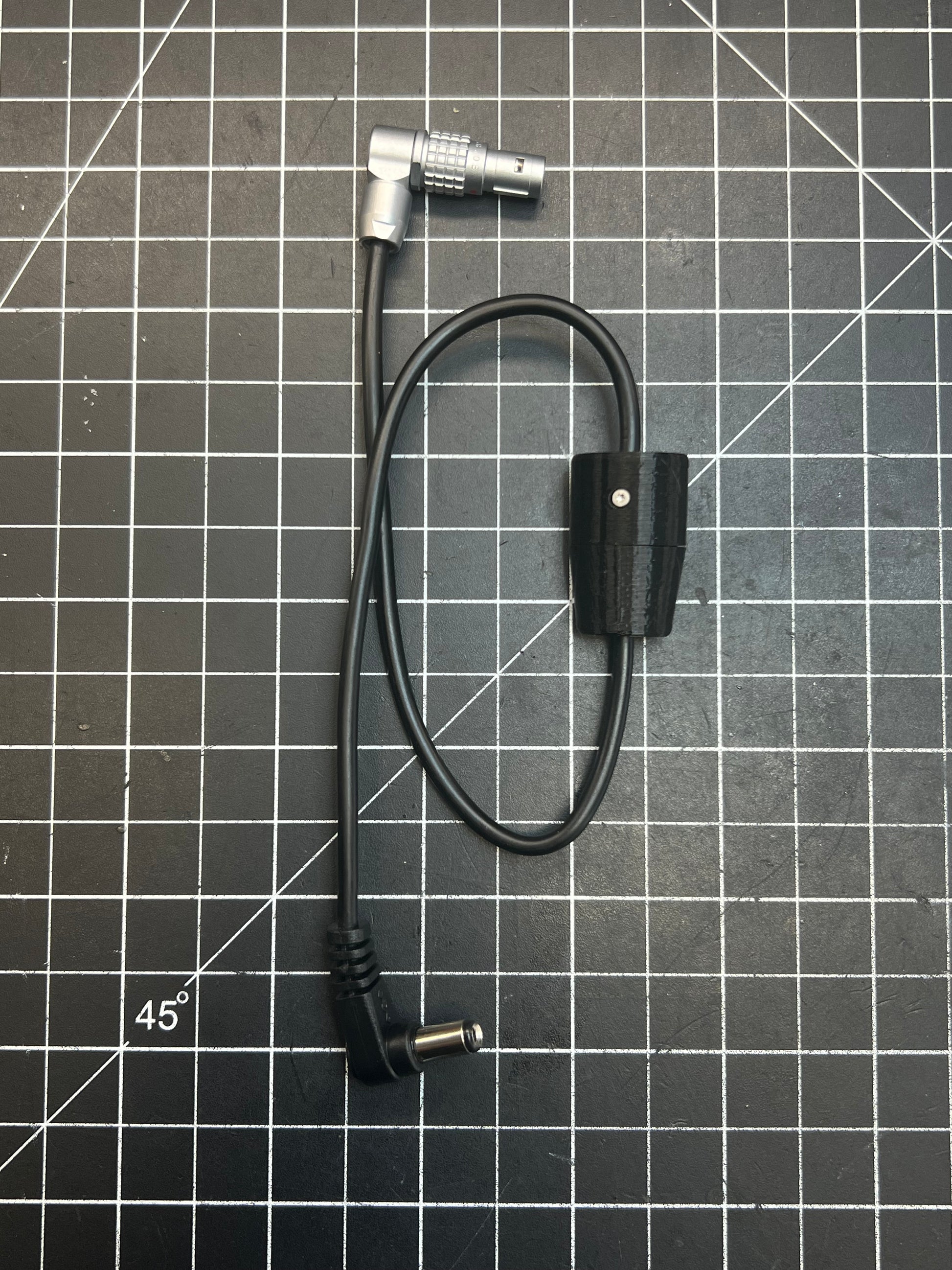

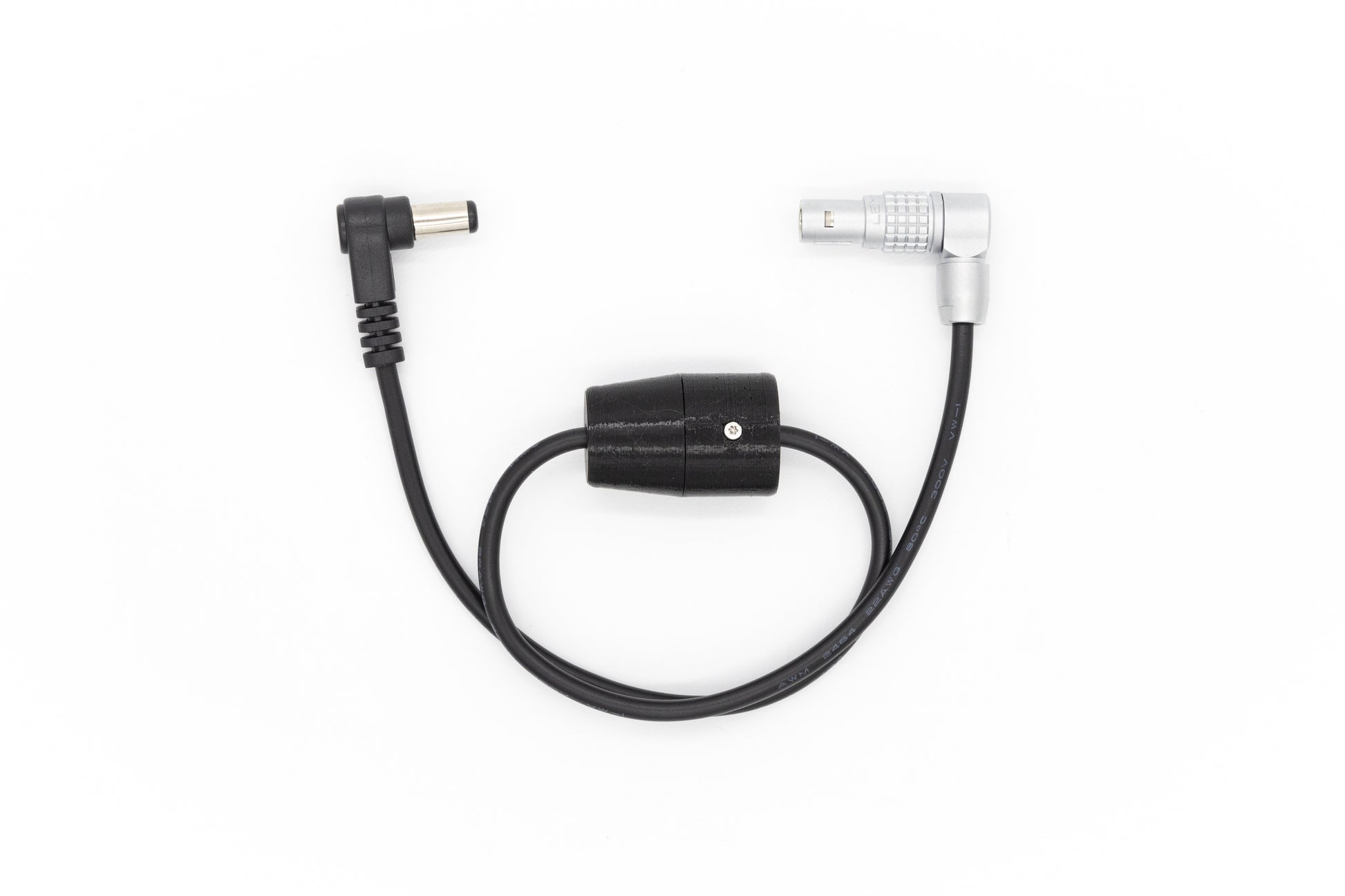

The Trinity 2 LBUS monitor port on the mastergrip puts out 24V leaving you to only power 24V monitors. This cable provides a solution for reducing the voltage in a small form factor to a regulated 12V 3A. Custom circuit board and 3d printed housing provides a slim voltage conversion vs a standard plastic box which can get in the way.
Total Length is 14"(35cm). Genuine Lemo 4pin Anglissimo connector.
If you want a different monitor connector or custom options please just send us an email!
How we measure cable lengths
How we measure cable lengths
All cables are measured from the ends of the connectors. Tolerances are within +/- 1.0”(2.5cm). If a specific length is required you must contact us before placing the order. Cable pictured is 6".
What is Lemo Anglissimo
What is Lemo Anglissimo
Lemo makes an adjustable right angle connector called Anglissimo. When choosing a cable with an Anglissimo connector you must choose one of the following 8 directions. The number chosen is the direction of the cable exit. These can be adjusted with a Lemo wrench.
The standard Lemo right angle exits at position 5 in the diagram below.
