SJS Tally Light

**There are so many uses for tally lights other than on steadicam. There are also many other rigs than what are listed here. We make custom tally cables every week. We can also modify your existing hardware with our tally light box. Please reach out if you need something that we don't have listed here!**

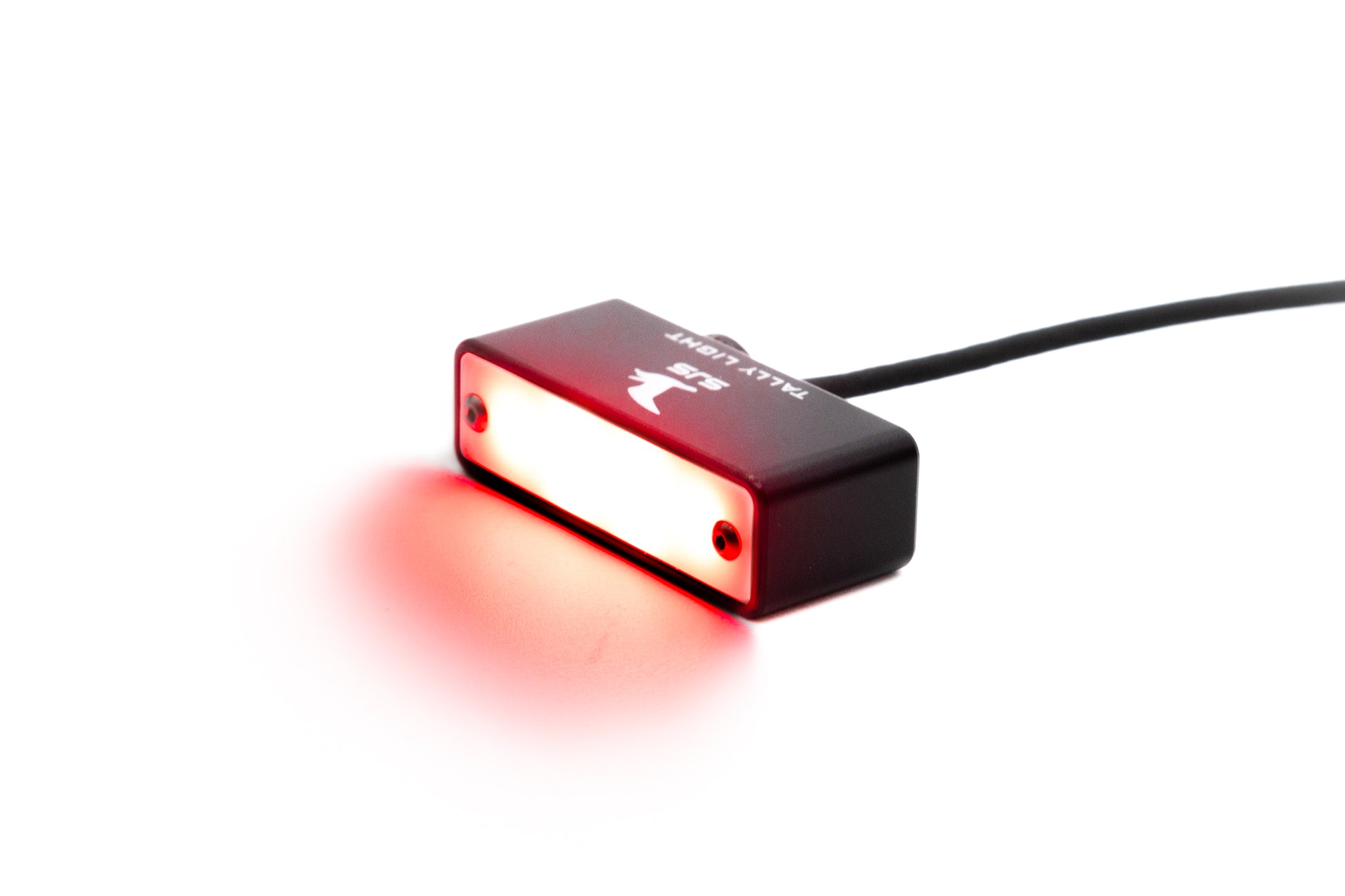

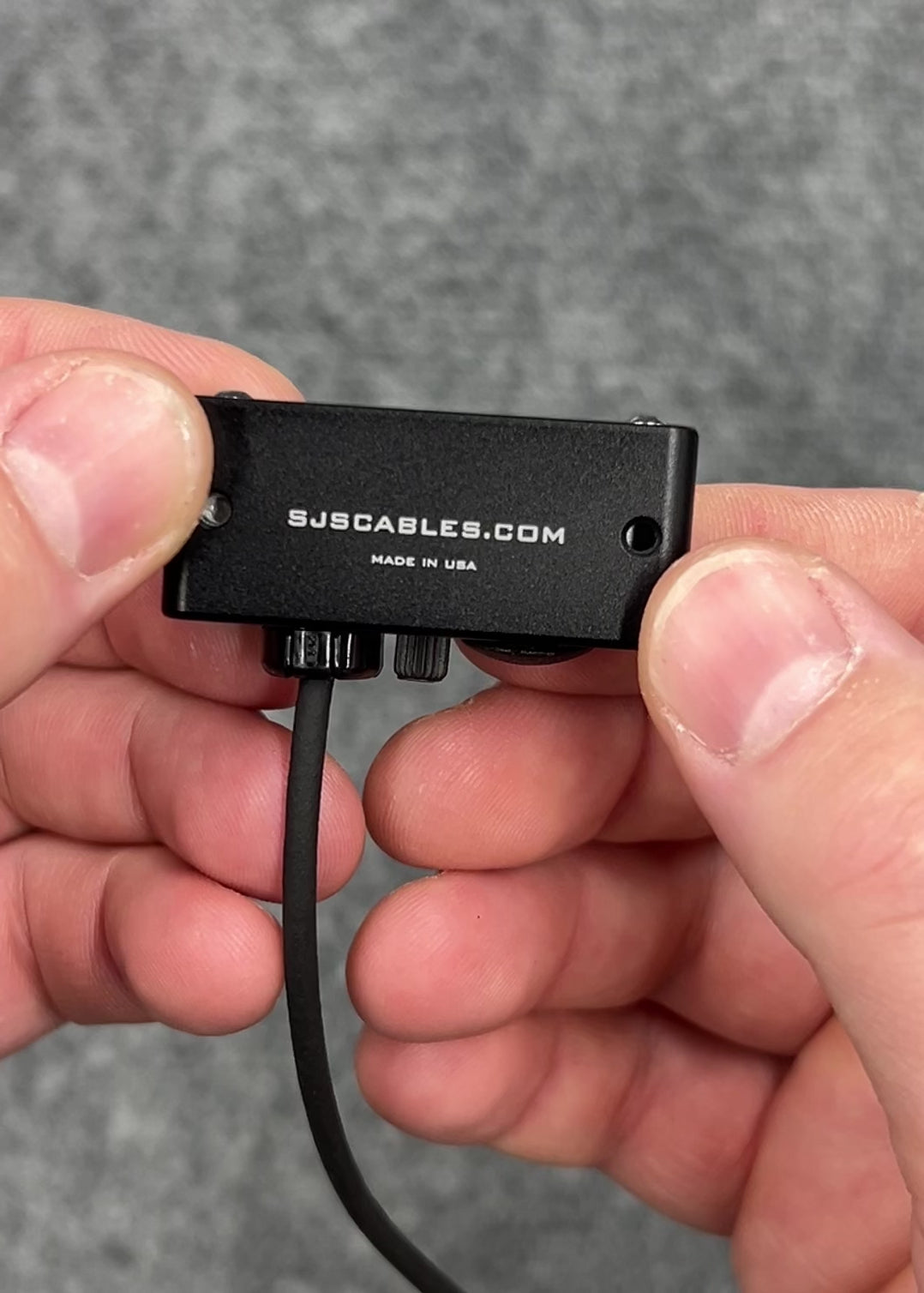

The SJS Tally Light is a dimmable LED box used for the operator or talent to know that they are on air as the light will turn on when the camera is recording. The box is CNC Machined out of aluminum with a laser cut frosted white display on the front and a dimmer switch on the back. It measures 1.80"x0.75"x0.55"(45mmx19mmx14mm) and only weighs 20g!

Want to turn down your brightness in a dark studio to be discrete? Or do you want to turn the brightness up to get your talents attention from a distance? Maybe you want to operate with sun glasses on in direct sunlight and still see when you're on air. The possibles are endless once you have the ability to adjust on the fly.

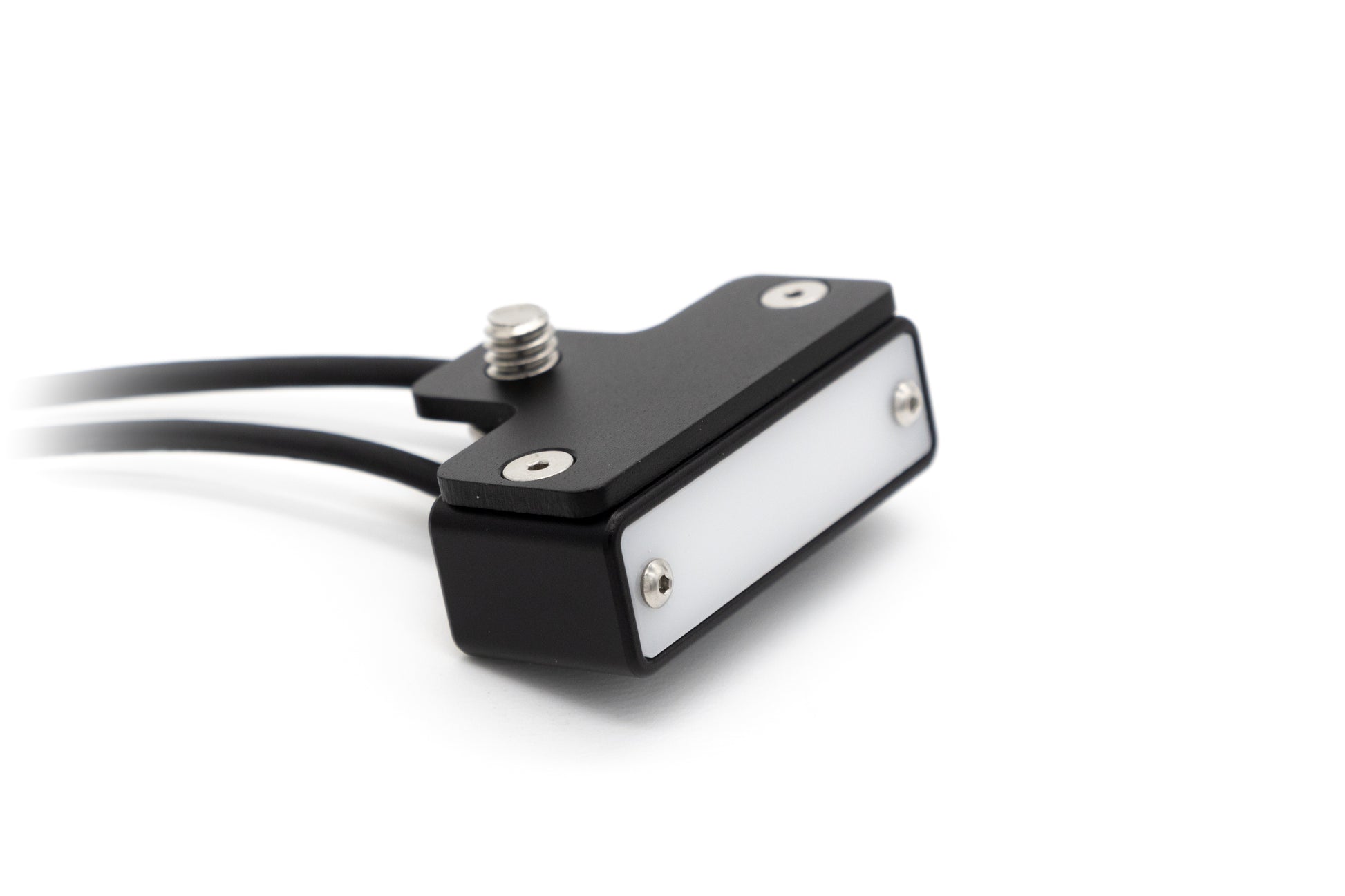

The Tally Light also includes a mounting plate with a captive 1/4-20 screw, or the user can mount it with velcro as it very light weight!

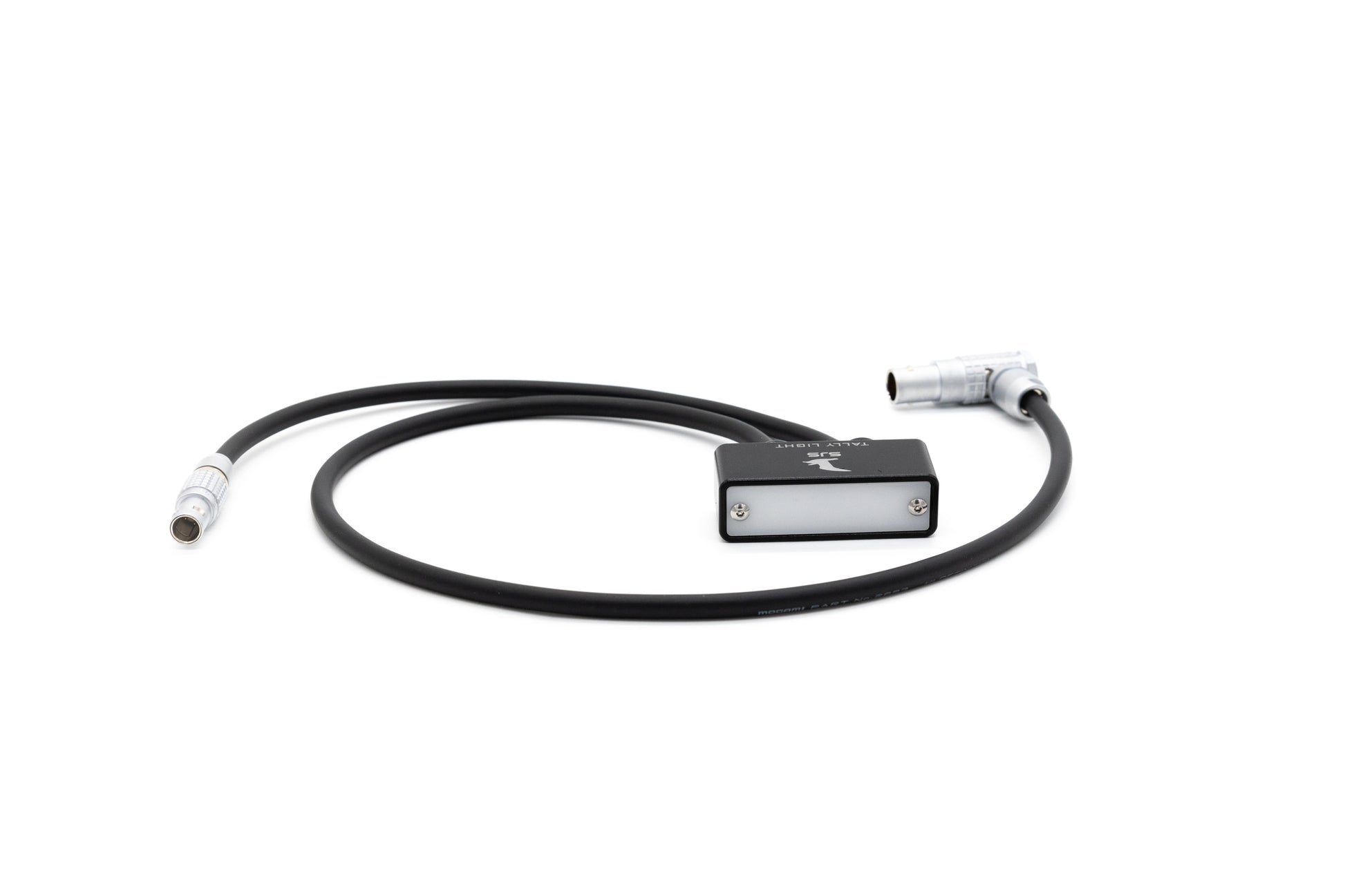

Included with each Tally Light is your choice of Lemo connector or photo sensor coming out of the two holes on the back. If you only need a 1 cable solution the other hole is capped.

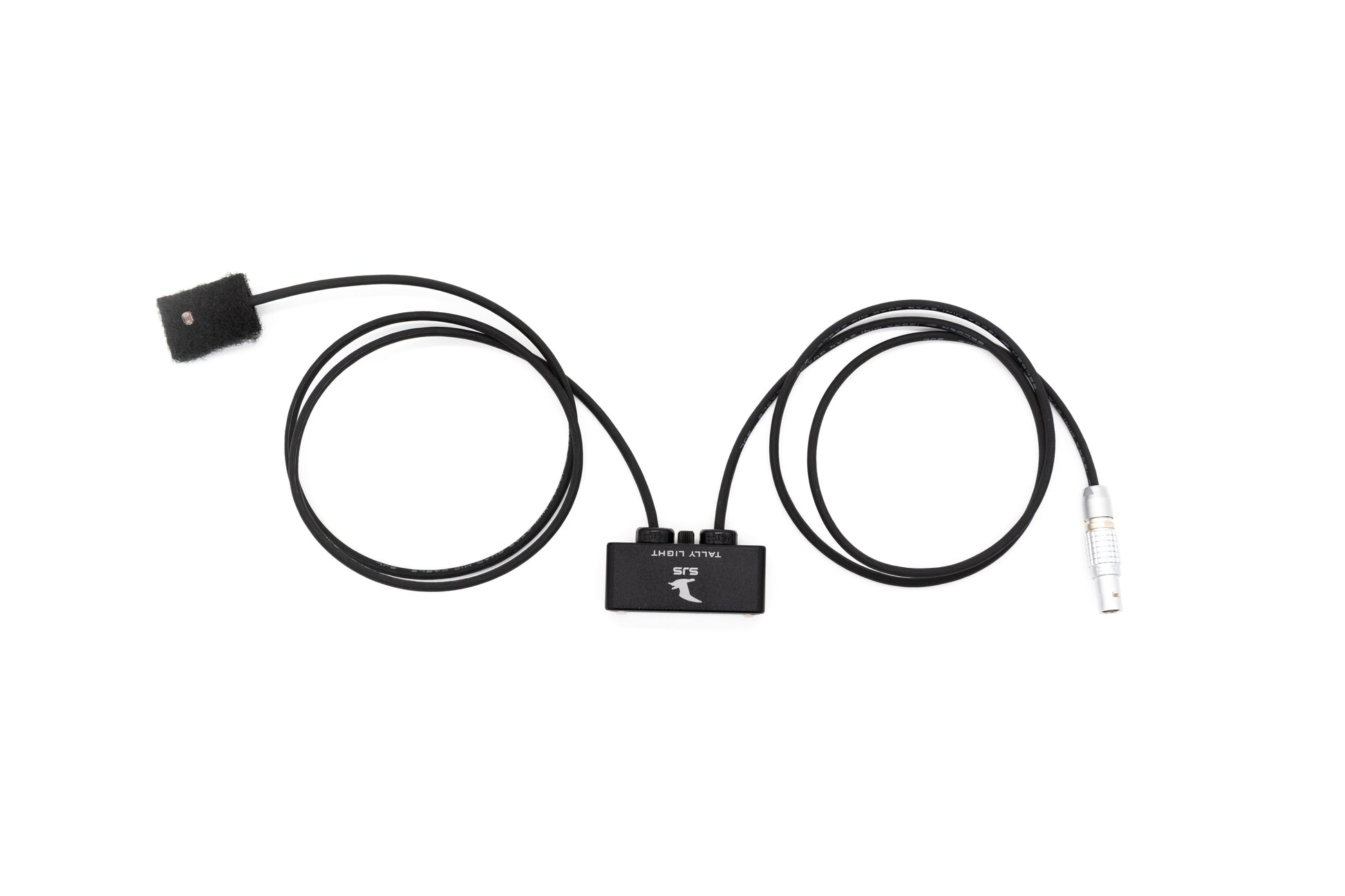

If you are using this as an upper tally you will want to add a photo sensor cable from the camera and a sled cable to send that signal back down the center post, so 2 cables would be coming out of the box.

If you are using it as a lower tally you can also add the option for pass through to power your monitor.

If you only want to use this as a lower tally but still need a photo sensor for the upper tally click here.

All tally light cables are 24"(60cm) long. If you want a different length please add it to your order notes.

Any questions please don't hesitate to send an email!

*If you are using our Tally Light as a lower tally and using another manufacturers upper tally please make sure that upper tally is not reducing the sled's voltage.
