Alexa Mini Low Profile Battery Plate
Alexa Mini Low Profile Battery Plate
Regular price
$375.00 USD
Regular price
Sale price
$375.00 USD
Unit price
per
Couldn't load pickup availability
*1-2 week lead time. Please contact if you need quicker.

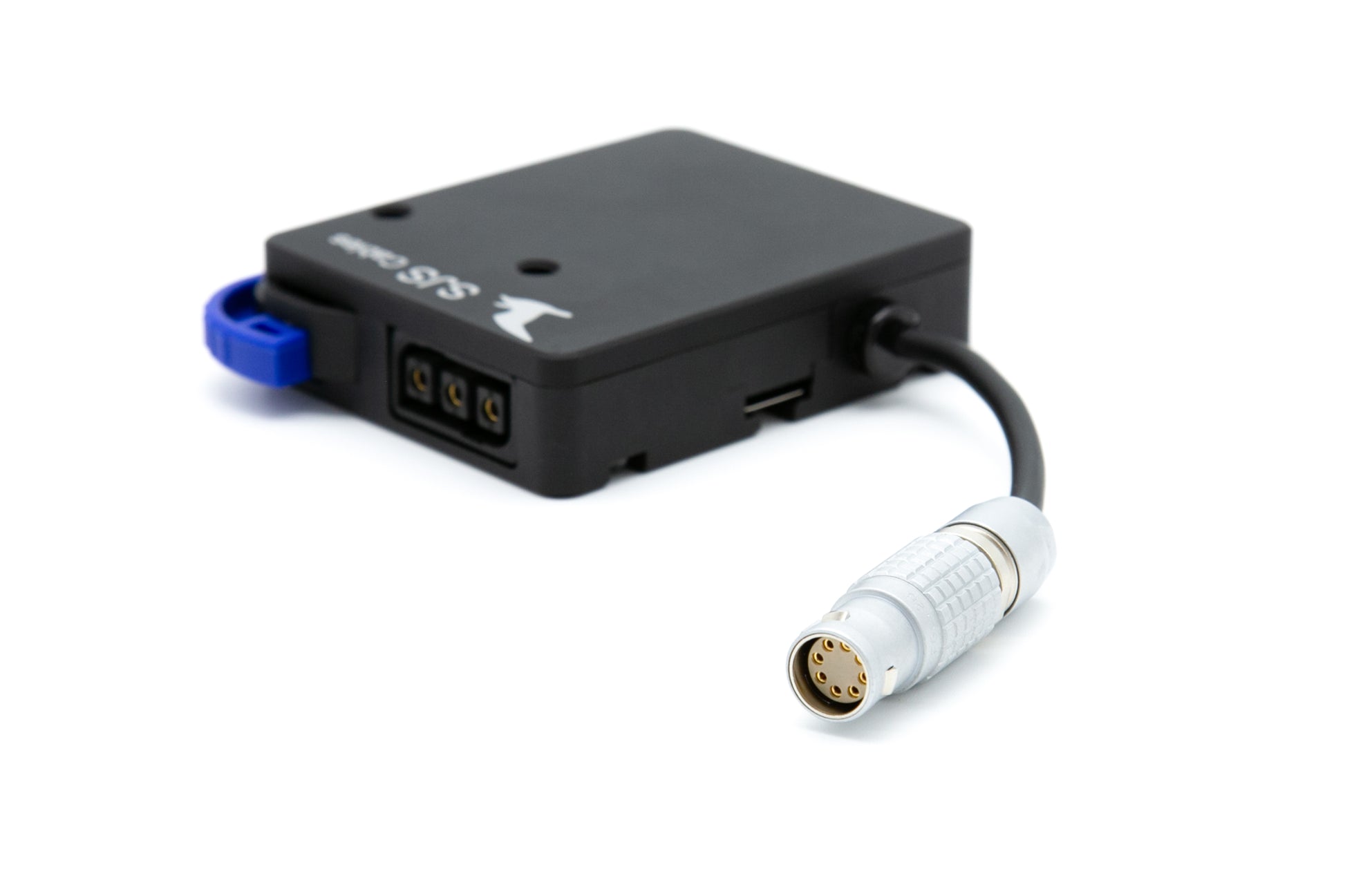

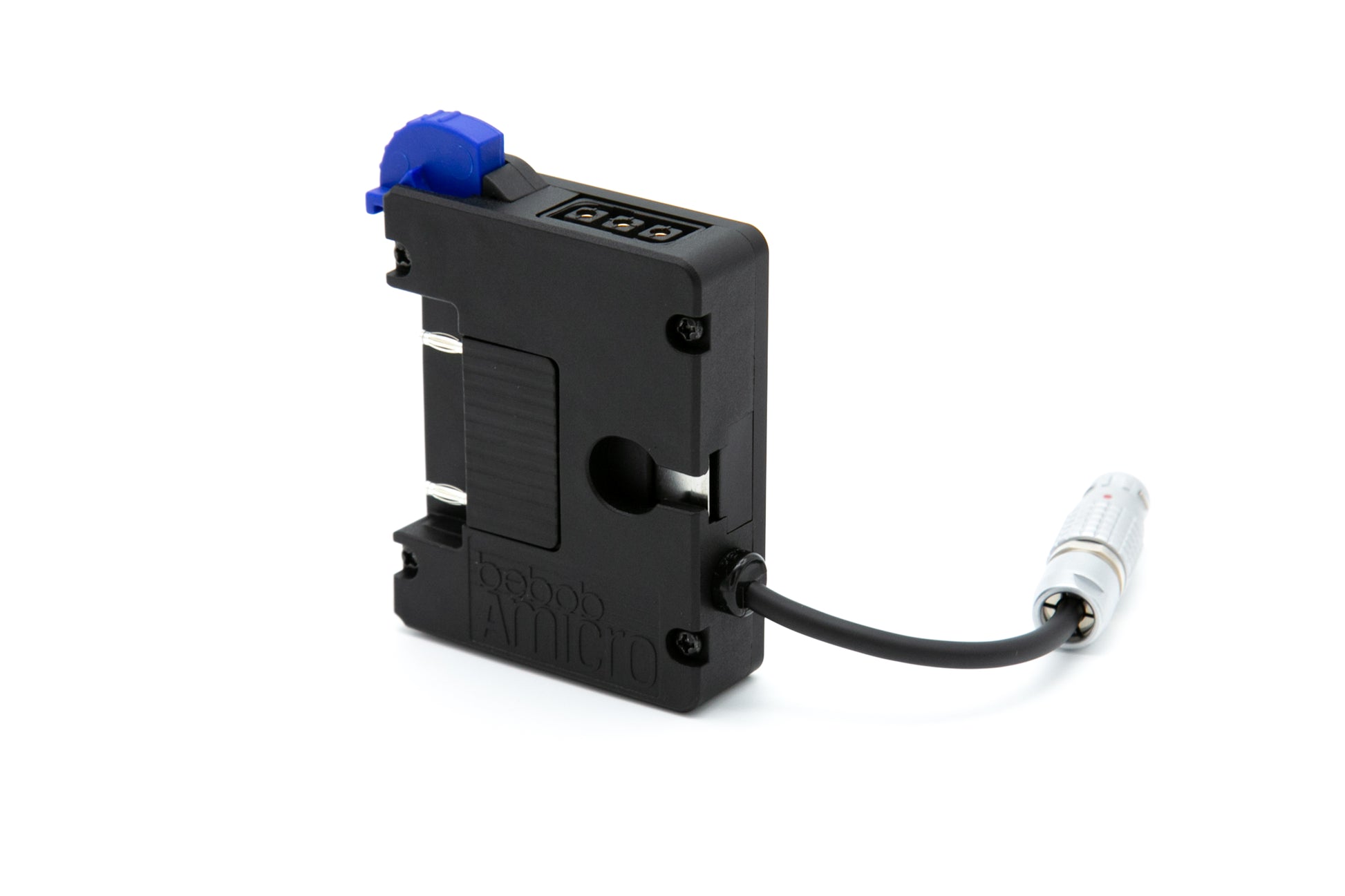

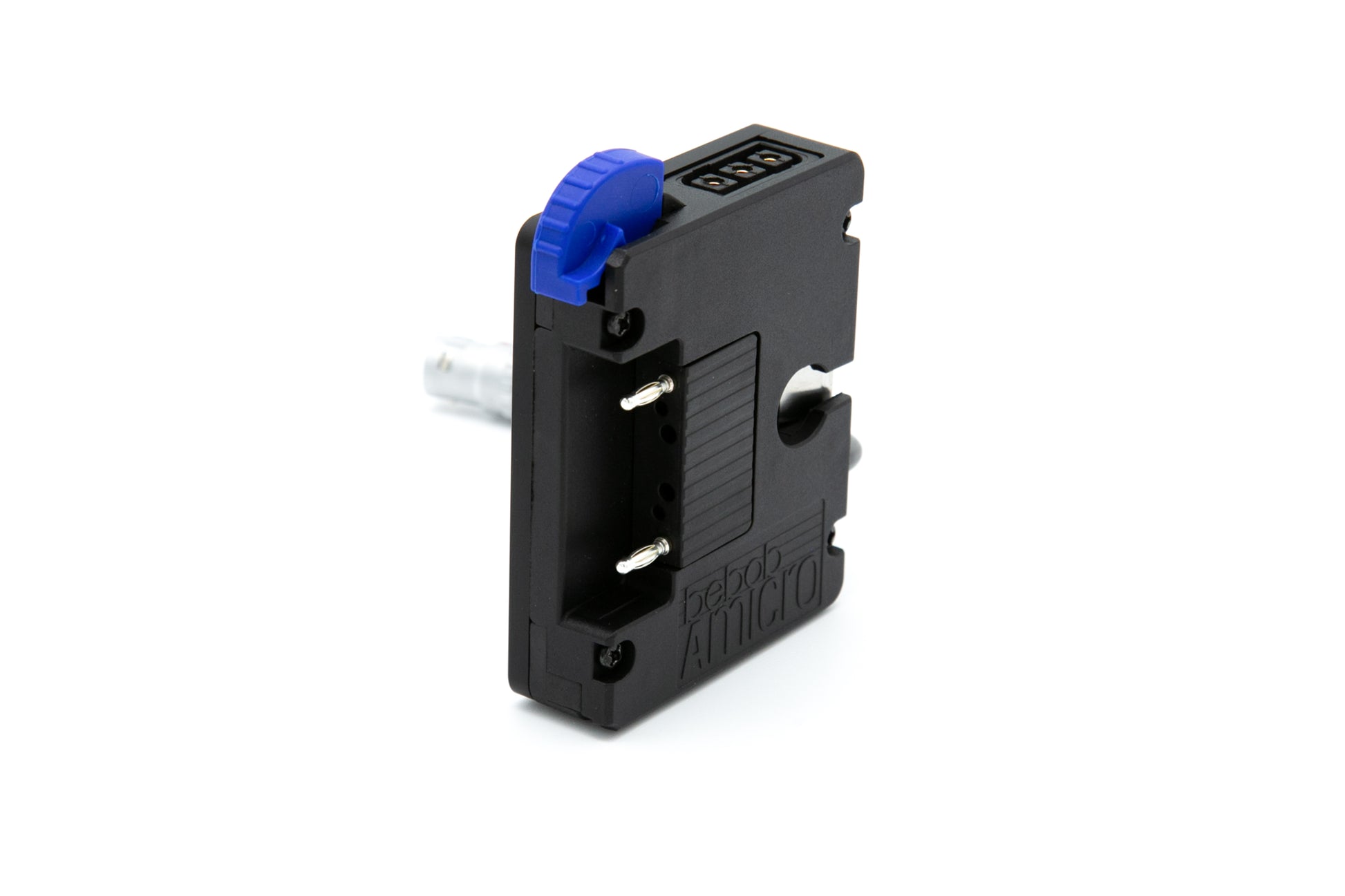

The Alexa Mini Low Profile Battery Plate powers the Alexa Mini and Mini LF with the 8pin Lemo at 11-16V. It is ideal when the user wants a compact and lightweight set up.
The battery plate comes with one Dtap port and a CNC machined aluminum backing anodized black.

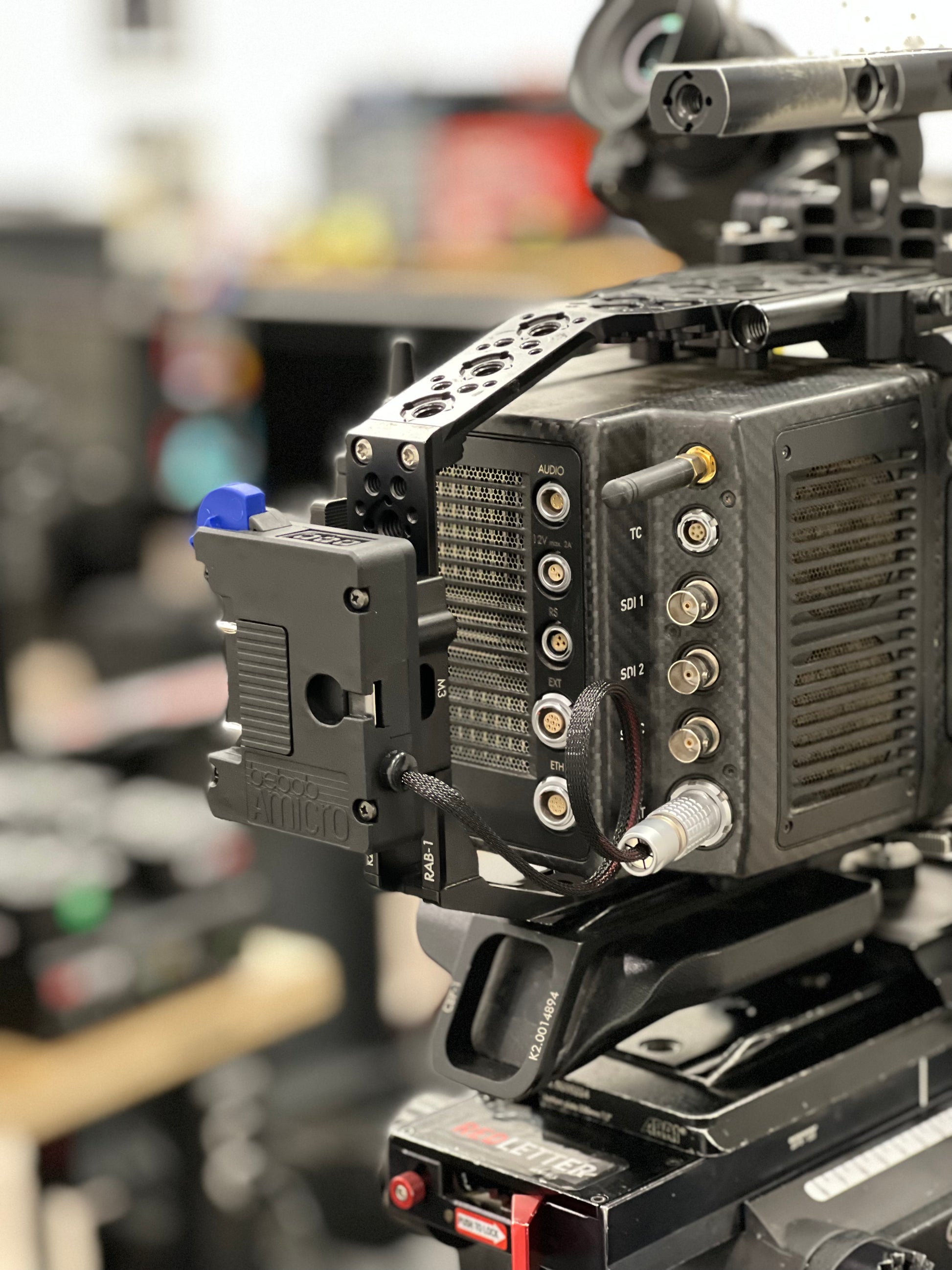

It fits on the Arri Mini Cages with the back dovetail system.
DOES NOT include the RMB-1 Clamp. The user must supply their own.

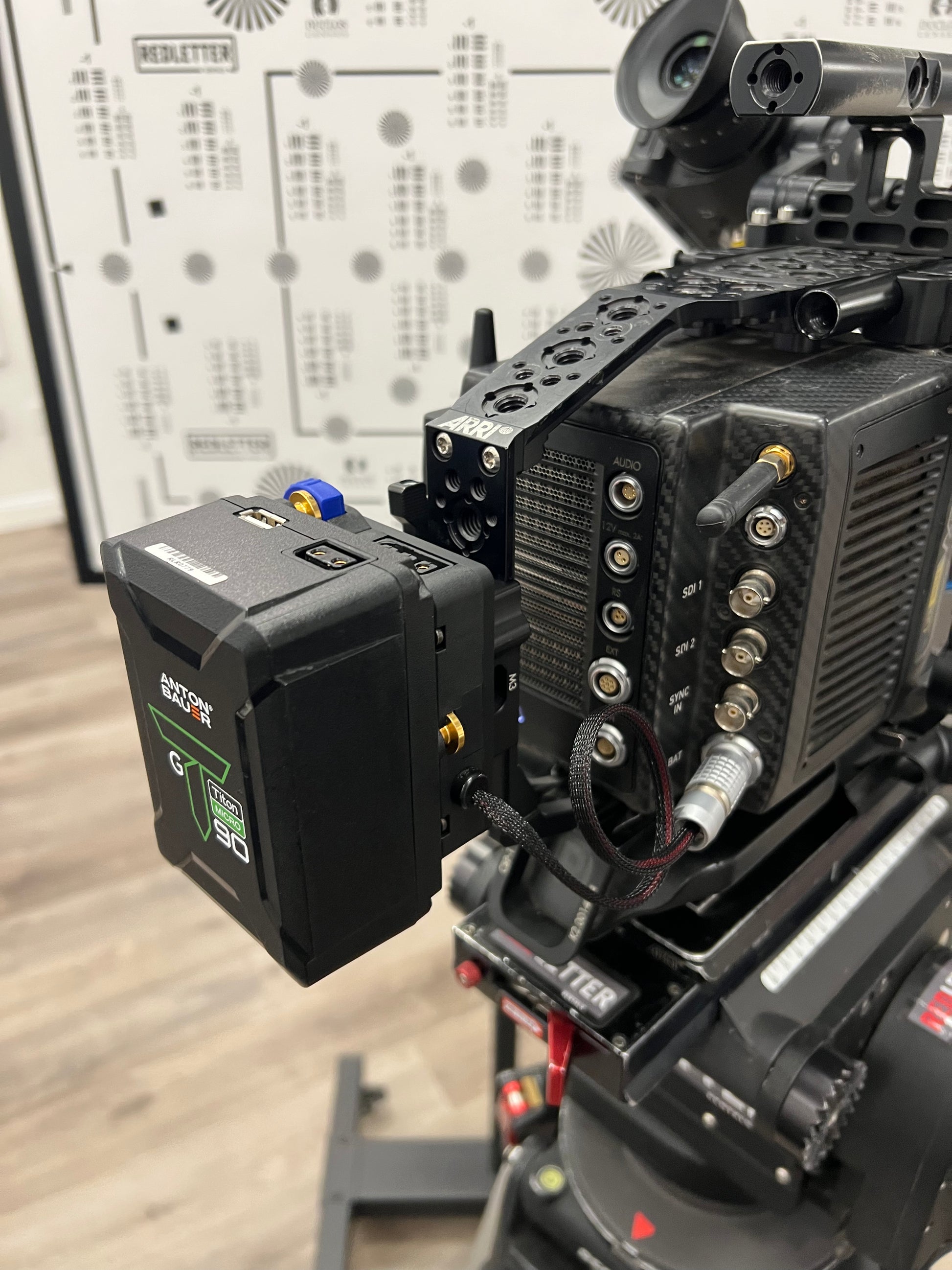

5" cable works great for keeping the battery in the stock location.

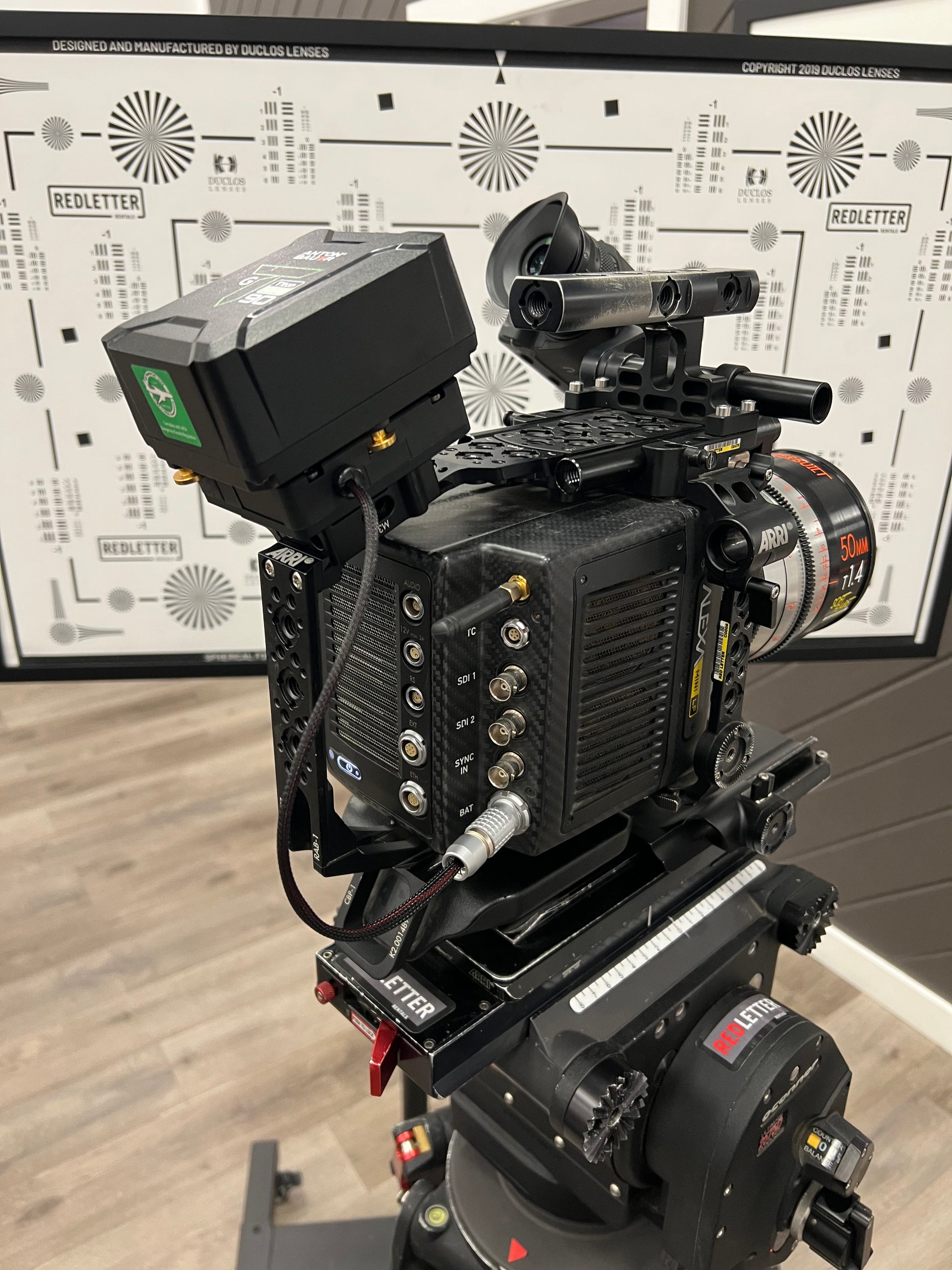

10" cable is ideal if the user wants to put the battery plate on top and have more flexibly.
How we measure cable lengths
How we measure cable lengths
All cables are measured from the ends of the connectors. Tolerances are within +/- 1.0”(2.5cm). If a specific length is required you must contact us before placing the order. Cable pictured is 6".
What is Lemo Anglissimo
What is Lemo Anglissimo
Lemo makes an adjustable right angle connector called Anglissimo. When choosing a cable with an Anglissimo connector you must choose one of the following 8 directions. The number chosen is the direction of the cable exit. These can be adjusted with a Lemo wrench.
The standard Lemo right angle exits at position 5 in the diagram below.
